11302-3

Voltage Rating :
Bandwidth :
Impedance :
Frequency :
Termination Style : SMD/SMT
Packaging : Reel
Product : Directional Couplers
Operating Temperature Range : - 55 C to + 85 C
Frequency Range : 225 MHz to 400 MHz
Package / Case : 25.4 mm x 12.19 mm


Features:

· 225 - 400 MHz
· Low loss
· High Isolation
· 90o Quadrature
· Surface Mountable
· Tape And Reel
· Convenient Package
· 100% Tested




Description

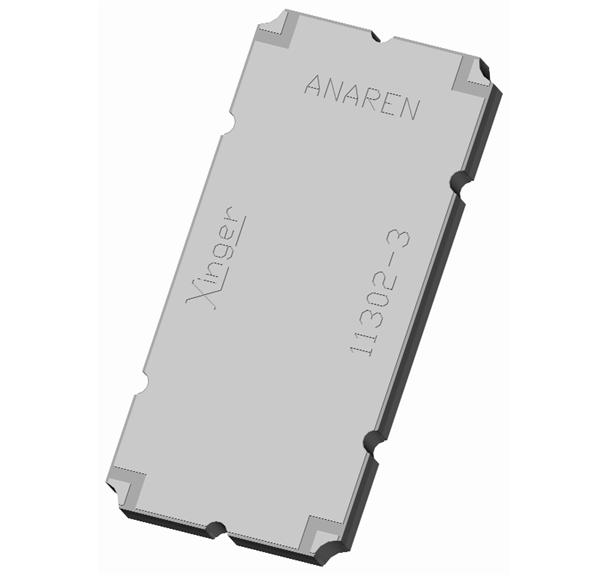

The 11302-3 is a low profile 3dB hybrid coupler in an easy to use surface mount package for applications in the 225 - 400 MHz band. The 11302-3 is ideal for balanced amplifiers and signal distribution and is an ideal solution for the ever increasing demands for smaller printed circuit boards.

Parts have been run through rigorous qualification and units are 100% tested. They are manufactured using materials with x and y thermal expansion coefficients compatible with common substrates.
