112CNQ030A

Schottky (Diodes & Rectifiers) 110 Amp 30 Volt Common Cathode

product image

112CNQ030A Picture
SeekIC No. : 00191600 Detail

112CNQ030A: Schottky (Diodes & Rectifiers) 110 Amp 30 Volt Common Cathode

floor Price/Ceiling Price

US $ 8.1~8.34 / Piece | Get Latest Price
Part Number:
112CNQ030A
Mfg:
Vishay Semiconductors
Supply Ability:
5000

Price Break

  • Qty
  • 0~143
  • 143~200
  • 200~500
  • Unit Price
  • $8.34
  • $8.22
  • $8.1
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Schottky Rectifiers Peak Reverse Voltage : 30 V
Forward Continuous Current : 55 A Max Surge Current : 5100 A
Configuration : Dual Common Cathode Forward Voltage Drop : 0.57 V at 110 A
Maximum Reverse Leakage Current : 3500 uA Operating Temperature Range : - 55 C to + 150 C
Mounting Style : Through Hole Package / Case : D-61-8
Packaging : Tube

Description

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Peak Reverse Voltage : 30 V
Product : Schottky Rectifiers
Packaging : Tube
Operating Temperature Range : - 55 C to + 150 C
Configuration : Dual Common Cathode
Max Surge Current : 5100 A
Package / Case : D-61-8
Maximum Reverse Leakage Current : 3500 uA
Forward Continuous Current : 55 A
Forward Voltage Drop : 0.57 V at 110 A


Features:

150 °C TJ operation
Center tap module
Very low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
Low profile, small footprint, high current package
New fully transfer-mold low profile, small footprint, high current package

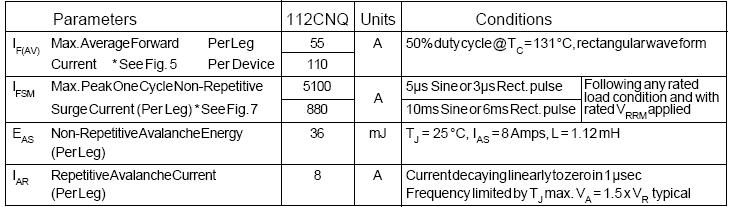

Specifications

  Connection Diagram


Description

  The 112CNQ030A center tap Schottky rectifier module has been optimized for very low forward voltage drop, with moderate leakage. The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications of 112CNQ030A are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
