110RKIPbF

Features: • High current and high surge ratings• Hermetic ceramic housing• RoHS compliant• Lead (Pb)-free• Designed and qualified for industrial levelApplication• DC motor controls• Controlled DC power supplies• AC controllersSpecifications PARA...

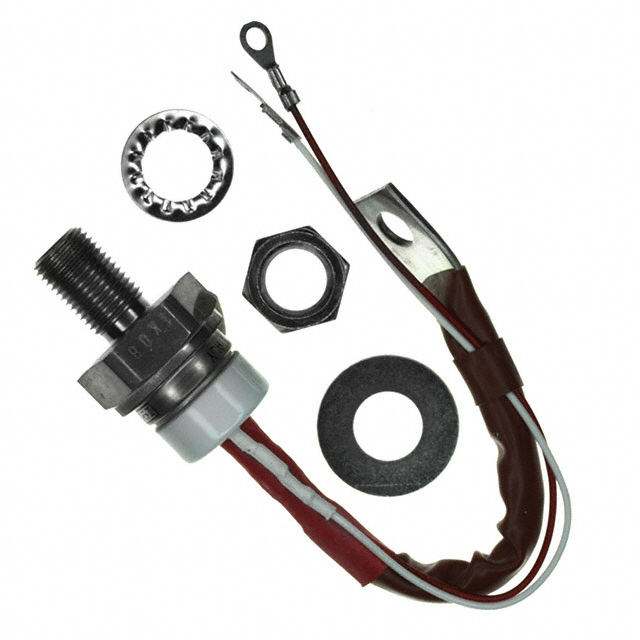

product image

110RKIPbF Picture
See larger image
SeekIC No. : 004208026 Detail

110RKIPbF: Features: • High current and high surge ratings• Hermetic ceramic housing• RoHS compliant• Lead (Pb)-free• Designed and qualified for industrial levelApplication•...

110RKIPbF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
110RKIPbF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High current and high surge ratings
• Hermetic ceramic housing
• RoHS compliant
• Lead (Pb)-free
• Designed and qualified for industrial level


Application

• DC motor controls
• Controlled DC power supplies
• AC controllers


Specifications

PARAMETER SYMBOL TEST CONDITIONS VALUES UNITS
Maximum average on-state current
at case temperature		 IT(AV) 180° conduction, half sine wave 110

90		 A

Maximum RMS on-state current IT(RMS) DC at 83 case temperature 172
Maximum peak, one-cycle A
non-repetitive surge current		 TSM t = 10 ms No voltage
reapplied		 Sinusoidal half wave,
initial TJ = TJ maximum		 2080

2180

1750

1830		 A
t = 8.3 ms
t = 10 ms 100 % VRRM
reapplied
t = 8.3 ms
Maximum I2t for fusing I2t t = 10 ms No voltage
reapplied		 21.7

19.8

15.3

14.0		 kA2s
t = 8.3 ms
t = 10 ms 100 % VRRM
reapplied
t = 8.3 ms
Maximum I2t for fusing I2t t = 0.1 to 10 ms, no voltage reapplied 217 kA2s
Low level value of threshold voltage

High level value of threshold voltage		 VT(TO)1

VT(TO)2		 (16.7 % x x IT(AV) < I < x IT(AV)), TJ = TJ maximum

(I > x IT(AV)), TJ = TJ maximum		 0.82

1.02		 V
Low level value of on-state slope resistance

High level value of on-state slope resistance		 rt1

rt2		 (16.7 % x x IT(AV) < I < x IT(AV)), TJ = TJ maximum

(I > x IT(AV)), TJ = TJ maximum		 2.16

1.70		 m
Maximum on-state voltage VTM Ipk = 350 A, TJ = TJ maximum, tp = 10 ms sine pulse 1.57 V
Maximum holding current

Typical latching current		 IH

IL		 TJ = 25 , anode supply 6 V resistive load 200

400		 mA
