10BQ040

Recovery Time :
Maximum Power Dissipation :
Configuration : Single
Mounting Style : SMD/SMT
Product : Schottky Rectifiers
Maximum Reverse Leakage Current : 100 uA
Operating Temperature Range : - 55 C to + 150 C
Forward Continuous Current : 1 A
Peak Reverse Voltage : 40 V
Packaging : Bulk
Package / Case : SMB (DO-214AA)
Max Surge Current : 430 A
Forward Voltage Drop : 0.7 V at 2 A


Features:

Small foot print, surface mountable
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability

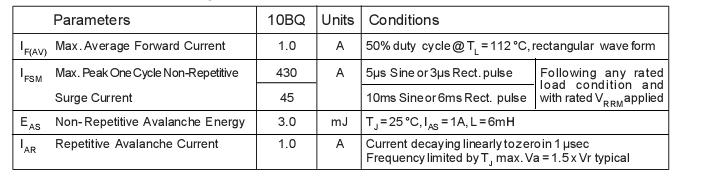

Specifications




Description

The 10BQ040 surface-mount Schottky rectifier has been de-signed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection.
