100C1286

Features: ·20 - 600 MHz·High Isolation·+40 dBm 3rd Order Intercept·Non-Reflective·TTL Driver·SMA ConnectorsPinoutSpecifications Parameter Min Typ Max Units Conditions Operating Frequency 20 600 MHz DC Current 250 300 mA At +5 VDC Supply C...

product image

100C1286 Picture
See larger image
SeekIC No. : 004207223 Detail

100C1286: Features: ·20 - 600 MHz·High Isolation·+40 dBm 3rd Order Intercept·Non-Reflective·TTL Driver·SMA ConnectorsPinoutSpecifications Parameter Min Typ Max Units Conditions Operat...

100C1286 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
100C1286
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·20 - 600 MHz
·High Isolation
·+40 dBm 3rd Order Intercept
·Non-Reflective
·TTL Driver
·SMA Connectors



Pinout

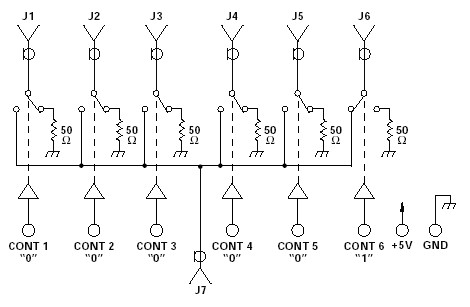

Connection Diagram


Specifications

Parameter
Min
Typ
Max
Units
Conditions
Operating Frequency
20
600
MHz

DC Current
250
300
mA
 At +5 VDC Supply
Control Type
TTL
Load Factor 1
Logic "0" = Isolation
Logic "1" = Thru
Control Current       High
                                Low
100
-400
A
A
 VIH = +2.7 V
VIL = +0.5 V
Insertion Loss
0.8
1.0
1.3
1.0
1.5
2.0
dB
dB
dB
 20 - 200 MHz
200 - 350 MHz
350 - 600 MHz
Isolation
85
70
90
73
dB
dB
 20 - 200 MHz
200 - 600 MHz
VSWR
1.25/1
1.35/1
20 - 600 MHz
Impedance
50
OHMS

Switching Speed
3.0
SEC
 50% TTL to 90% / 10% RF
Intercept Points          2nd
                                   3nd
+65
+40
dBm
dBm
 20 MHz
87 MHz
RF Power            Operate
                     No Damage

+10
+13
+30
dBm
dBm
dBm
 0.1 dB Comp. Below 40 MHz
0.1 dB Comp. Above 40 MHz
Operating Temperature
-55
+25
+85
TA
