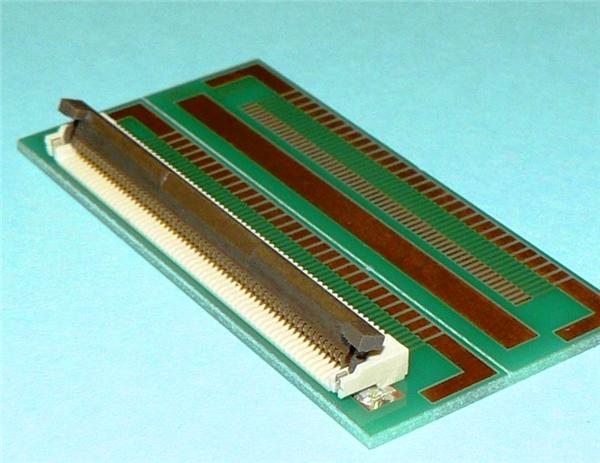

See larger image

SeekIC No. : 002164105 Detail

10085901-6015ELF: FFC / FPC Connectors 60P RA LOW CONTACT SIDE ENTRY SMT ZIF

10085901-6015ELF Data Sheet

US $ .68~.88 / Piece | Get Latest Price

Part Number:: 10085901-6015ELF
Mfg:: FCI
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250

Unit Price
$.88
$.79
$.75
$.68

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

1008 evaluate
US $.28 - .59 / Piece

Terminals TERMINAL .250
10080054-001LF evaluate
US $2.04 - 2.48 / Piece

Headers & Wire Housings 10P DR EJCT LTCH HDR GOLD OVER NICKEL
10080054-002LF evaluate
US $2.01 - 2.27 / Piece

Headers & Wire Housings 10P DR EJCT LTCH HDR GOLD OVER NICKEL

Product Details

Quick Details

Product Type :	Free Hanging	Pitch :	0.5 mm
Number of Positions / Contacts :	60	Mounting Angle :	Right
Mounting Style :	SMD/SMT	Housing Material :	Liquid Crystal Polymer (LCP), Glass Reinforced
Contact Material :	Phosphor Bronze	Contact Plating :	Gold
Voltage Rating :	50 VAC/DC	Current Rating :	0.5 A

Description

Pitch : 0.5 mm
Mounting Angle : Right
Mounting Style : SMD/SMT
Housing Material : Liquid Crystal Polymer (LCP), Glass Reinforced
Contact Plating : Gold
Voltage Rating : 50 VAC/DC
Product Type : Free Hanging
Contact Material : Phosphor Bronze
Current Rating : 0.5 A
Number of Positions / Contacts : 60

Parameters:

Technical/Catalog Information	10085901-6015ELF
Vendor	FCI (VA)
Category	Connectors
Pitch	0.020" (0.50mm)
Mounting Type	Surface Mount, Right Angle
Features	Zero Insertion Force (ZIF)
Packaging	Digi-Reel?
Connector Type	Bottom Contacts
Number of Positions	60
Locking Feature	Flip Lock
Termination	Solder
FFC, FCB Thickness	0.30mm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	10085901 6015ELF 100859016015ELF 609 3439 6 ND 60934396ND 609-3439-6
