100371SC

Number of Bits :
Mounting Style : SMD/SMT
Product : Multiplexer
Maximum Operating Temperature : + 85 C
Packaging : Rail
Package / Case : SOIC-24
Logic Family : ECL
Supply Voltage - Max : - 5.7 V
Supply Voltage - Min : - 4.2 V
Number of Lines (Input / Output) : 12 / 3
Propagation Delay Time : 1.3 ns at - 4.2 V to - 5.7 V


Features:

35% power reduction of the 100171
2000V ESD protection
Pin/function compatible with 100171
Voltage compensated operating range = -4.2V to -5.7V
Available to industrial grade temperature range

Pinout




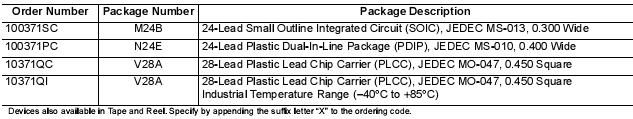

Specifications




Description

The 100371 contains three 4-input multiplexers which share a common decoder (inputs S  and S ). Output buffer 0 1 gates provide true and complement outputs. A HIGH on the Enable input (E) forces all true outputs LOW (see Truth Table). All inputs have 50 k? pull-down resistors.
