Product Details

Description



Features:

35% power reduction of the 100171 n 2000V ESD protection
Pin/function compatible with 100171
Voltage compensated operating range = −4.2V to −5.7V
Available to MIL-STD-883




Pinout

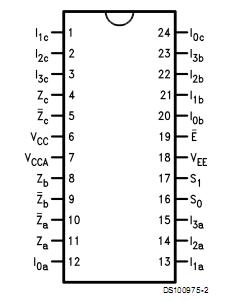

Connection Diagram


Specifications

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Storage Temperature (TSTG) −65˚C to +150˚C
Maximum Junction Temperature (TJ)
Ceramic +175˚C
VEE Pin Potential to Ground Pin −7.0V to +0.5V
Input Voltage (DC) VEE to +0.5V
Output current (DC Output HIGH) −50 mA
ESD (Note 2) 2000V


Description

The 100371 contains three 4-input multiplexers which share a common decoder (inputs S0 and S1). Output buffer gates provide true and complement outputs. A HIGH on the Enable input (E) forces all true outputs LOW (see Truth Table). All in-puts have 50 kΩ pull-down resistors.
