100360

Features: *Lower power than 100160*2000V ESD protection*Pin/function compatible with 100160*Voltage compensated operating range = −4.2V to −5.7V*Min to Max propagation delay 35% tighter than 100160*Available to industrial grade temperature rangePinoutSpecificationsStorage Temperature (...

product image

100360 Picture
See larger image
SeekIC No. : 004207155 Detail

100360: Features: *Lower power than 100160*2000V ESD protection*Pin/function compatible with 100160*Voltage compensated operating range = −4.2V to −5.7V*Min to Max propagation delay 35% tighter ...

100360 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
100360
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Lower power than 100160
* 2000V ESD protection
* Pin/function compatible with 100160
* Voltage compensated operating range = −4.2V to −5.7V
* Min to Max propagation delay 35% tighter than 100160
* Available to industrial grade temperature range


Pinout

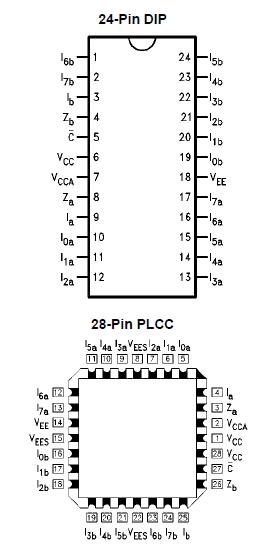

Connection Diagram


Specifications

Storage Temperature (TSTG)                                    −65°C to +150°C
Maximum Junction Temperature (TJ)                                          +150°C
VEE Pin Potential to Ground Pin                                      −7.0V to +0.5V
Input Voltage (DC) VEE to                                                             +0.5V
Output Current (DC Output HIGH)                                              −50 mA
ESD (Note 2)                                                                              2000V


Description

The 100360 is a dual parity checker/generator. Each half has nine inputs; the output is HIGH when an even number of inputs are HIGH. One of the nine inputs (Ia or Ib) has the shorter through-put delay and is therefore preferred as the expansion input for generating parity for 16 or more bits. The 100360 also has a Compare (C) output which allows the circuit to compare two 8-bit words. The C output i LOW when the two words match, bit for bit. All inputs have 50 k pull-down resistors.
