100353

Features:

Low power operation
2000V ESD protection
Voltage compensated operating range = −4.2V to −5.7V
Available to MIL-STD-883

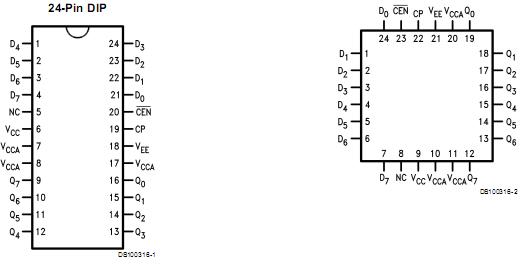

Pinout




Specifications

If Military/Aerospace specified devices are required,please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Above which the useful life may be impared
Storage Temperature (T_STG)                                                    −65˚C to +150˚C
Maximum Junction Temperature (T_J)
    Ceramic                                                                                               +175˚C
V_EE Pin Potential to Ground Pin −7.0V to +0.5V
Input Voltage (DC)                                                                          V_EE to + 0.5V
Output Current (DC Output HIGH) −50 mA                               −50 mA


Description

The 100353 contains eight D-type edge triggered, master/slave flip-flops with individual inputs (D_n), true outputs (Q_n),a clock input (CP), and a common clock enable pin (CEN).Data enters the master when CP is LOW and transfers to the slave when CP goes HIGH. When theCEN input goes HIGH it overrides all other inputs, disables the clock, and the Q out-puts maintain the last state.

The 100353 output drivers are designed to drive 50Ω termi-nation to −2.0V. All inputs have 50 kΩ pull-down resistors
