Product Details

Description



Features:

30% power reduction of the 100121
2000V ESD protection
Pin/function compatible with 100121
Voltage compensated operating range = −4.2V to −5.7V
Available to industrial grade temperature range (PLCC package only)


Pinout

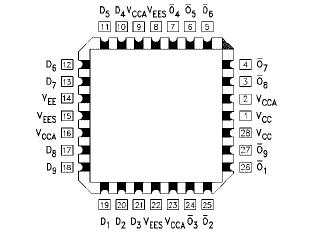

Connection Diagram


Specifications

Storage Temperature (TSTG)                −65°C to +150°C
Maximum Junction Temperature (TJ)                    +150°C
VEE Pin Potential to Ground Pin               −7.0V to +0.5V
Input Voltage (DC)                                      VEE to +0.5V
Output Current (DC Output HIGH)                       −50 mA
ESD (Note 2)                                                        2000V


Description

The 100321 is a monolithic 9-bit inverter. The device contains nine inverting buffer gates with single input and output. All inputs have 50 kΩ pull-down resistors.
