Product Details

Description



Features:

Differential outputs
Output cut-off capability
Drives a 25Ω ECL load
2000V ESD protection
Voltage compensated range = −4.2V to −5.7V
Available to industrial grade temperature range


Pinout

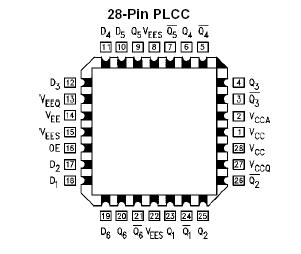

Connection Diagram


Specifications

Storage Temperature (TSTG)                        −65°C to +150°C
Maximum Junction Temperature (TJ)                            +150°C
Pin Potential to Ground Pin (VEE)                     −7.0V to +0.5V
Input Voltage (DC)                                              VEE to +0.5V
Output Current (DC Output HIGH)                             −100 mA
ESD (Note 2)                                                              2000V


Description

The 100319 is a Hex Line Driver with output cut-off capability. The 100319 has single ended ECL inputs and differential ECL outputs, designed to drive a differential, doubly terminated 50Ω transmission line (25Ω equivalent impedance) in an ECL backplane. A LOW on the Output Enable (OE) will set both the true and complementary outputs, to a high impedance or cut-off state. The cut-off state is designed to be more negative than a normal ECL LOW state.
