087706.3MXEP

Current Rating : 6.3 Amps
Voltage Rating : 250 Volts
Termination Style : Axial
Body Material : Ceramic
Packaging : Bulk
Product : Axial Lead and Cartridge Fuses
Fuse Size / Group : 3.6 mm x 10 mm
Fuse Type : Slow Blow
Dimensions : 10 mm L x 3.6 mm D


Description

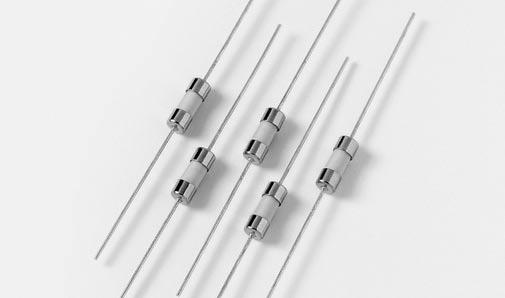

The 087706.3MXEP is single pigtail axial lead 3.6*10mm,slo-blo fuse. The device is ideally suited for lighting, power supply, and adapter applications.

Features of the 087706.3MXEP are:(1)designed to meet IEC 60127-3 standard sheet 4;(2)slo-blo, ceramic body fuse in a compact package;(3)single pigtail axial lead format;(4)Pb-free, RoHS compliant;(5)available in ratings of 2 to 6.3Amperes.

The electrical characteristics of the 087706.3MXEP are:(1)ampere rating:6.3A;(2)voltage rating:250V;(3)interrupting rating:63A@250VAC;(4)nominal cold resistance:0.0087Ohms;(5)nominal melting:190A2sec;(6)nominal voltage drop:60mV;(7)nominal power dissipation:1130mW.

If you want to know more information such as the electrical characteristics about the 087706.3MXEP, please download the datasheet in www.seekic.com or www.chinaicmart.com .

Parameters:

Technical/Catalog Information	087706.3MXEP
Vendor	Littelfuse Inc
Category	Circuit Protection
Current	6.3A
Voltage - Rated	250V
Package / Case	Axial
Fuse Type	Slow Blow, Long Time Lag
Mounting Type	Through Hole
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	087706 3MXEP 0877063MXEP F3300 ND F3300ND F3300
