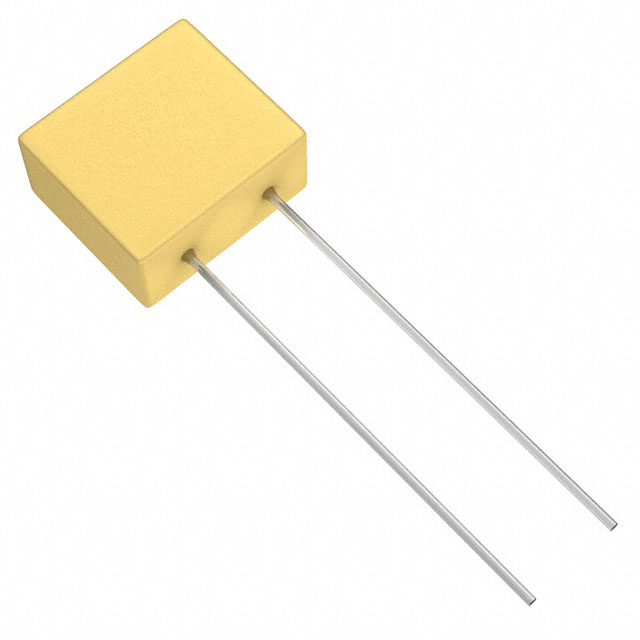

See larger image

SeekIC No. : 002929308 Detail

05HV24B105K: CAP CER 1UF 500V 10% RADIAL

05HV24B105K Data Sheet

Get Latest Price

Part Number:: 05HV24B105K
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/3/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

05HV10B103K evaluate
CAP CER 10000PF 500V 10% RADIAL
05HV10N102KN evaluate
US $14.56 - 20.72 / Piece

CAP CER 1000PF 500V 10% RADIAL
05HV10N471KN evaluate
US $13.81 - 19.65 / Piece

CAP CER 470PF 500V 10% RADIAL

Product Details

Quick Details

Series:	HV	Manufacturer:	Kemet
Capacitance:	1.0µF	Dimensions :	120.4 mm L
Voltage - Rated:	500V	Tolerance:	±10%
Temperature Coefficient:	X7R	Mounting Type:	Through Hole
Operating Temperature:	-55°C ~ 125°C	Applications:	SMPS Filtering, Bypass, Decoupling
Ratings:	-	Package / Case:	Radial
Size / Dimension:	0.570" L x 0.271" W (14.48mm x 6.89mm)	Height - Seated (Max):	0.500" (12.70mm)
Thickness:	-	Thickness (Max):	-
Lead Spacing:	0.475" (12.06mm)	Features:	Low ESL (Stacked), High Voltage
Packaging:	Bulk

Description

Operating Temperature: -55°C ~ 125°C
Ratings: -
Thickness: -
Failure Rate: -
Tolerance: ±10%
Temperature Coefficient: X7R
Capacitance: 1.0µF
Thickness (Max): -
Mounting Type: Through Hole
Packaging: Bulk
Package / Case: Radial
Applications: SMPS Filtering, Bypass, Decoupling
Manufacturer: Kemet
Voltage - Rated: 500V
Height - Seated (Max): 0.500" (12.70mm)
Features: Low ESL (Stacked), High Voltage
Series: HV
Size / Dimension: 0.570" L x 0.271" W (14.48mm x 6.89mm)
Lead Spacing: 0.475" (12.06mm)

Parameters:

Technical/Catalog Information	05HV24B105K
Vendor	Kemet
Category	Capacitors
Capacitance	1.0F
Voltage - Rated	500V
Tolerance	±10%
Package / Case	Radial
Temperature Coefficient	X7R
Packaging	Bulk
Features	High Voltage
Lead Spacing	0.475" (12.06mm)
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	05HV24B105K 05HV24B105K
