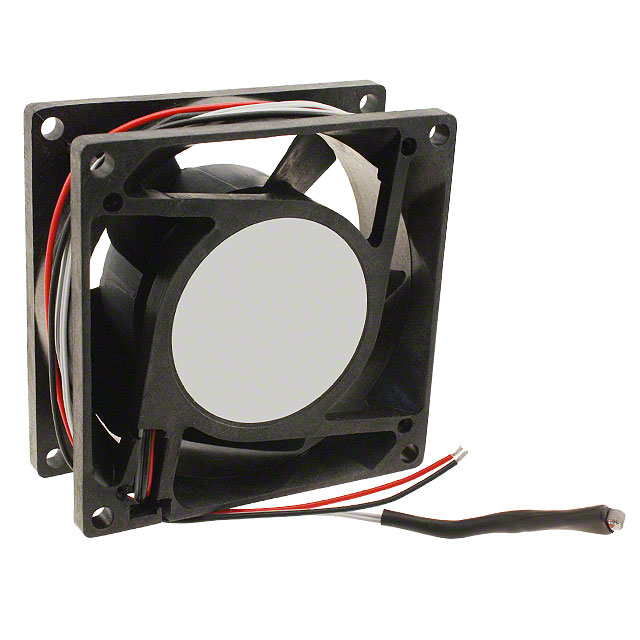

032397: FAN 80X32MM 40CFM 24V BALL

032397 Data Sheet

US $ 18.14~31.21 / Piece | Get Latest Price

Part Number:: 032397
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~50
50~100
100~250
250~500
500~1000

Unit Price
$31.21
$29.03
$23.95
$22.5
$19.6
$18.87
$18.14

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

03230 evaluate
Analog Panel Meters 1357 0-150 ACA 3.
0323100000 evaluate
US $4.88 - 4.88 / Piece

CONN TERM BLOCK TS32 BARE
0323-1-15-00-00-00-10-0 evaluate
US $.17 - .19 / Piece

Circuit Board Hardware - PCB SWAGE MNT PIN RECPT

Product Details

Quick Details

Series:	Sprint	Manufacturer:	Comair Rotron
Fan Type:	Tubeaxial	Size / Dimension:	Square - 80mm L x 80mm H x 32mm W
Voltage - Rated:	24VDC	Power (Watts):	2.40W
Features:	-	RPM:	4200 RPM
Noise:	44.2 dB(A)	Static Pressure:	0.325 in H2O (80.9 Pa)
Package / Case :	SOT-393	Air Flow:	40.0 CFM (1.13m³/min)
Termination:	2 Wire Leads	Bearing Type:	Sleeve

Description

Fan Type: Tubeaxial
Features: -
Termination: 2 Wire Leads
Bearing Type: Sleeve
Operating Temperature: -
RPM: 4200 RPM
Voltage - Rated: 24VDC
Air Flow: 40.0 CFM (1.13m³/min)
Manufacturer: Comair Rotron
Power (Watts): 2.40W
Size / Dimension: Square - 80mm L x 80mm H x 32mm W
Series: Sprint
Noise: 44.2 dB(A)
Static Pressure: 0.325 in H2O (80.9 Pa)

Parameters:

Technical/Catalog Information	032397
Vendor	Comair Rotron
Category	Fans
Fan Type	Tubeaxial (Square)
Fan Size	80 x 80 x 32 mm
Input Voltage Typical	24 VDC
Feature(s)	2 Wire Leads
Flow	40.000 ft3/min [Typ]
Power	2.30 W [Typ]
Bearing Type	Sleeve
Voltage Range	12V ~ 28VDC
Weight	6.3000 oz [Nom]
Operating Temperature	-10 °C [Min]
Operating Temperature	70 °C [Max]
Flammability Rating	UL 94V-0
Standard	CSA
Standard	UL
Standard	TUV
Motor Type	DC Brushless
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	032397 032397 CR273 ND CR273ND CR273
