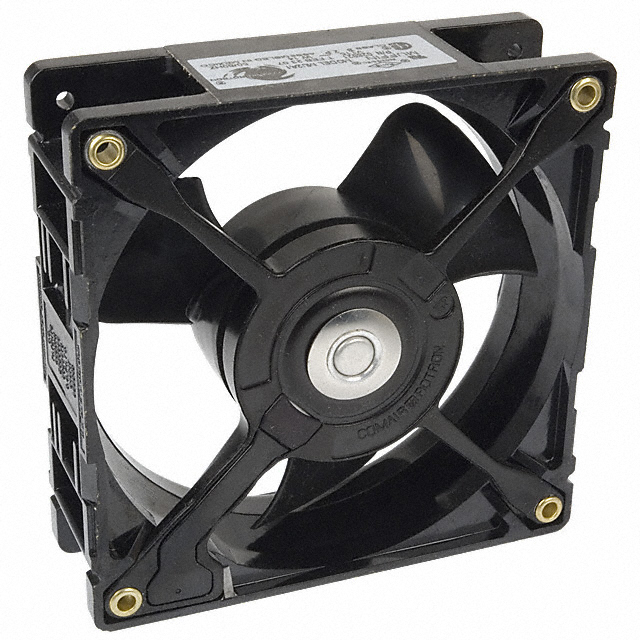

028027: FAN 115AC MUFFIN MU2B1 W/O FG

028027 Data Sheet

Get Latest Price

Part Number:: 028027
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

0280 evaluate
US $6.3 - 6.3 / Piece

Enclosures, Boxes, & Cases CASE 8.44X7.44X3.006 6-32 X 3/8" SCREW
02800 evaluate
Analog Panel Meters 1327 30-0-30 DCA
02800002Z evaluate
US $30.16 - 32.17 / Piece

Fuseholders, Clips, & Hardware Micro 2A

Product Details

Quick Details

Series:	Muffin AC	Manufacturer:	Comair Rotron
Air Flow:	102.0 CFM (2.88m³/min)	Bearing Type:	Ball
Fan Type:	Tubeaxial	Features:	-
Noise:	45.1 dB(A)	Power (Watts):	14W
RPM:	3100 RPM	Size / Dimension:	Square - 120mm L x 120mm H x 38mm W
Series :	ESD7M5.0DT5G	Static Pressure:	0.296 in H2O (73.7 Pa)
Termination:	2 Terminals	Voltage - Rated:	115VAC

Description

Bearing Type: Ball
Fan Type: Tubeaxial
Features: -
Voltage - Rated: 115VAC
Termination: 2 Terminals
Power (Watts): 14W
Size / Dimension: Square - 120mm L x 120mm H x 38mm W
RPM: 3100 RPM
Air Flow: 102.0 CFM (2.88m³/min)
Weight: 1.1 lbs (499g)
Manufacturer: Comair Rotron
Series: Muffin AC
Noise: 45.1 dB(A)
Static Pressure: 0.296 in H2O (73.7 Pa)

Parameters:

Technical/Catalog Information	028027
Vendor	Comair-Rotron
Category	Fans
Air Flow	102.0 CFM (2.88m³/min)
Bearing Type	Ball
Fan Type	Tubeaxial
Noise	45.1 dB(A)
Power (Watts)	14W
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Static Pressure	0.296 in H2O (73.7 Pa)
Termination	2 Terminals
Voltage Rating	115VAC
RPM	3100 RPM
Weight	1.1 lbs (498.95g)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	028027 028027 CR124 ND CR124ND CR124
