DELAY_LINE_OSCILLATOR

Published:2009/7/19 23:19:00 Author:Jessie | From:SeekIC

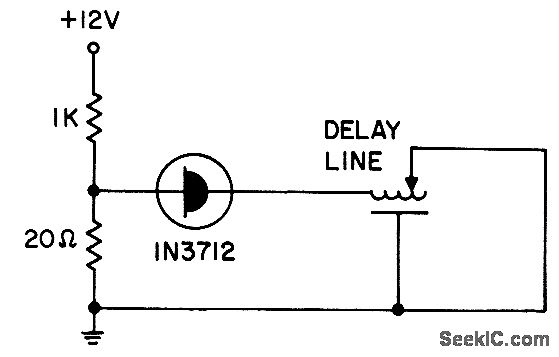

Tunnel-diode oscillator with General Radio 314-586 delay line produces square-wave output in range of 0.5 to 20 Mc.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 352.
