n circuit diagram of EMI filter

Published:2011/8/24 22:10:00 Author:Ecco | Keyword: n circuit , EMI filter | From:SeekIC

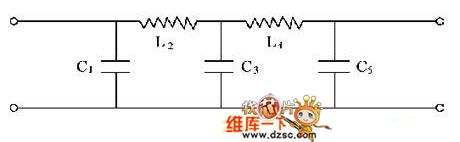

In the Figure, C1 = 6.4μF, L2 = 3.5mH, C3 = 8.4μF, L4 = 3.5mH, C5 = 6.4μF. If the input and output load resistance is 50Ω, the circuit in Figure 1 is made Laplace transformation, then you can find the frequency response of LC filter circuit in the low end insertion loss.
