_TWO_TRANSISTOR_REFLEX_RADIO

Published:2009/7/19 23:23:00 Author:Jessie | From:SeekIC

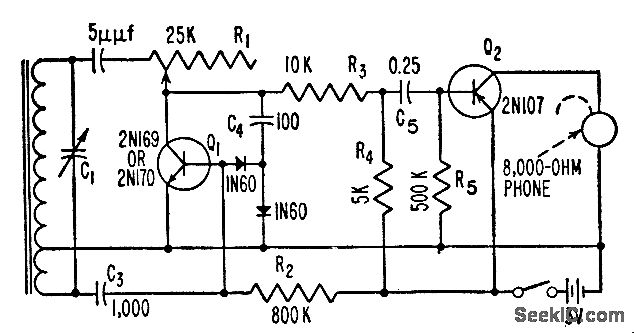

Q1 is used regeneratively as r-f amplifier and reflexively as first a-f amplifier, while Q2 serves as power amplifier.-S. A. Sullivan, Transistor Radio Uses Few Parts, Electronics, 31:1, p 90-92.
