Y_POSITION_DETECTOR_FOR_MISSILE_TRACKER

Published:2009/7/16 11:31:00 Author:Jessie | From:SeekIC

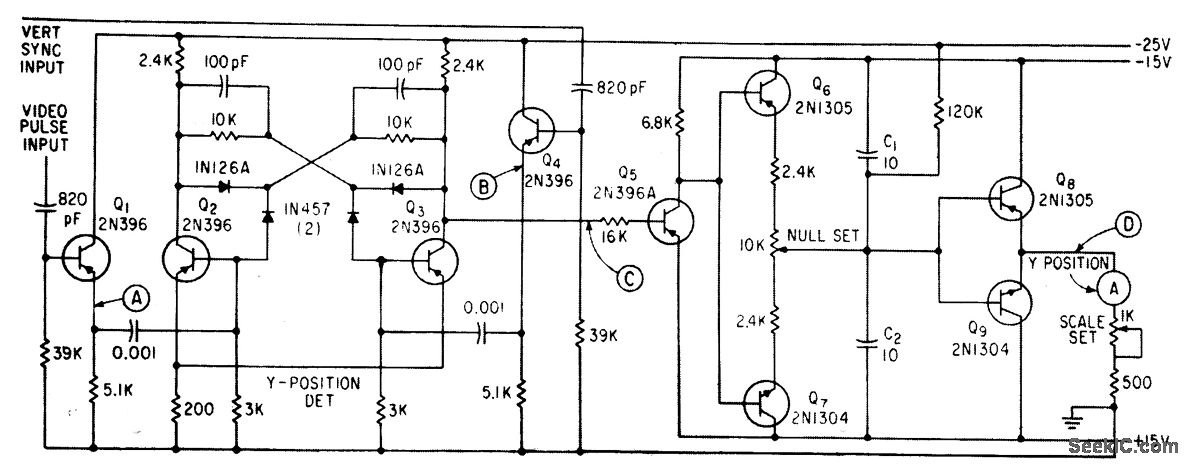

Flip-flop Q2-Q3 is triggered by processed video pulse fed through Q1and by delay vertical sync pulse fed through Q4. Width of flip-flop output pulse, relate to target position is integrated by Q6-Q7 and amplified by Q8-Q9 to give d-c output voltage proportional to Y-position of target. –T. L. Poppelbaum,TV Camera Tracker: Can it Detect Missile Decoys? Electronics, 36:17, p 51-55.
