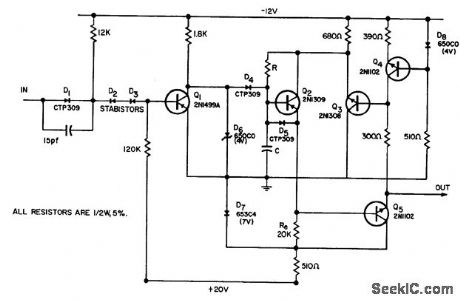

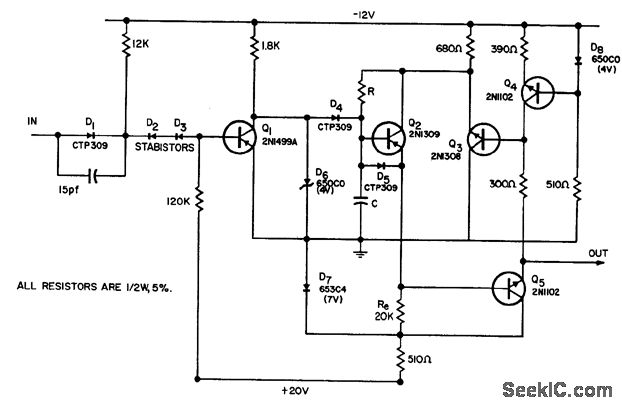

WIDE_RANGE_LINEAR_BOOTSTRAP_TIME_BASE

Published:2009/7/23 22:39:00 Author:Jessie | From:SeekIC

Delivers highly linear ramps at repetition roles up to 5 Mc, for input pulses from 0.1 microsec to several seconds wide. Nonlinearity is 5% for slow ramps, and improves to 0.05% for fast ramp. Measures pulse width accurately when used in combination with voltage comparator. Can also be used for sampling and for testing amplitude response of linear amplifiers.-T. Mollinga, A Wide-Range, Linear Time Base, EEE, 10:8, p 56-59.
