WARBLING_TONE_GENERATOR

Published:2009/7/6 5:31:00 Author:May | From:SeekIC

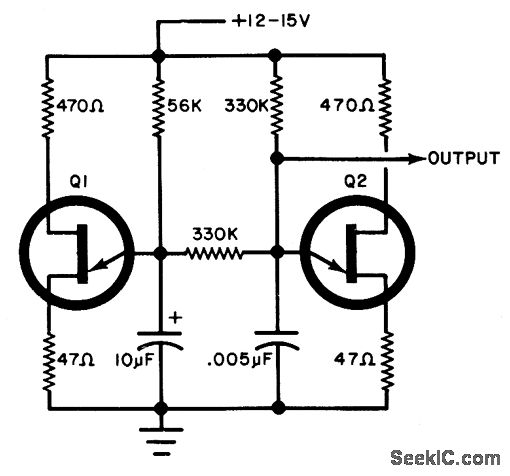

The circuit use two unijunction transistors. The low-frequency sawtooth generated by Q1 modulates the high-frequency tone generated by Q2. The output should feed into a high-impedance amplifier. Q1 = Q2 = 2N4871.
