WARBLE_GENERATOR

Published:2009/7/6 5:25:00 Author:May | From:SeekIC

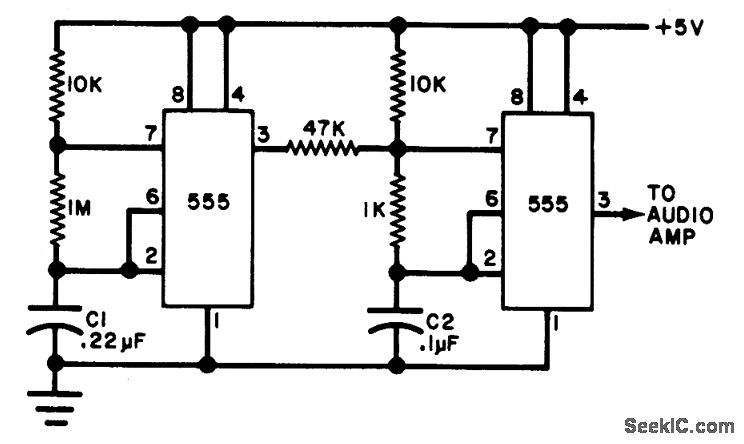

The circuit uses a pair of 555 timers or a single dual timer. Capacitor C1 controls the speed of the warble, while C2 determines the pitch. The values shown should produce quite a distinctive signal.
