VIDEO_SIGNAL_PROCESSOR

Published:2009/7/15 23:12:00 Author:Jessie | From:SeekIC

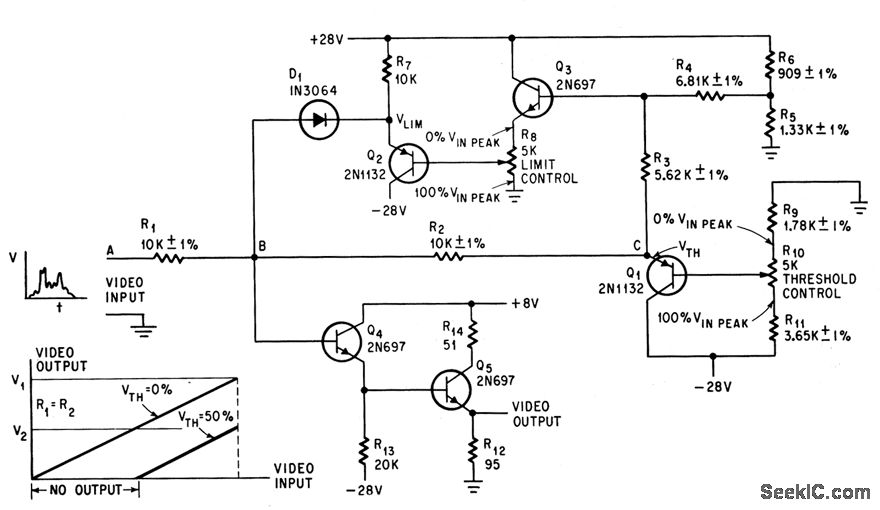

R10 adjusts threshold level and R8 adjusts limit level between which video input signal will be fed to crt display.-A. E. Popodi, Reliable Repertoire Of Display Circuits, Electronics, 38:2, p 60-66.
