VIDEO_LINE_RECEIVER

Published:2009/6/24 4:28:00 Author:Jessie | From:SeekIC

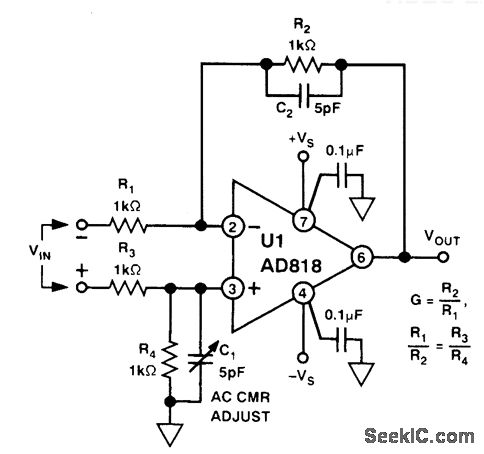

This circuit can achieve 46-dB common-mode rejection if R1, R2, R3, and R4 are matched to 1%. C1 is adjusted for best CMR above 1 MHz.
