VHF_SWEPI_OSCILLATOR

Published:2009/7/24 2:22:00 Author:Jessie | From:SeekIC

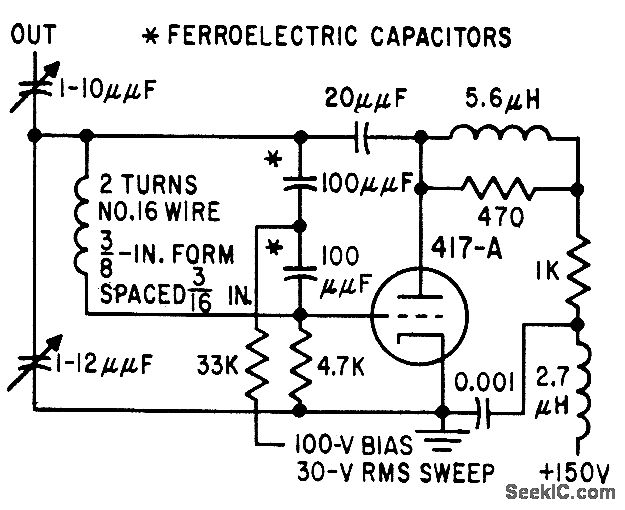

Voltage-tunable ferroelectric capacitors give tuning ratio of about 2 to 1 from 20 to 250 Mc and 1.5 to 1 from 250 to 400 Mc.-T. W. Butler, Jt., Ferroelectrics Tune Electronic Circuits, Electronics, 32:3, p 52-55.
