VFO Design

Published:2012/12/6 19:40:00 Author:muriel | Keyword: VFO Design | From:SeekIC

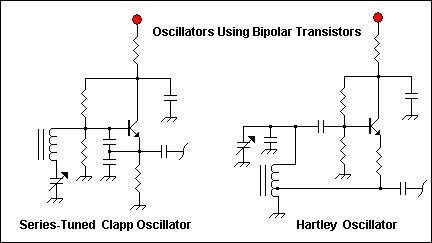

Reviewing the Amateur Radio literature revealed that JFETS enjoy tremendous popularity as the active device in LC local oscillators during the past ten years. To conform to the original design criteria of this project it was decided to build the VFO from only 2N3904s for the oscillator and the buffer sections. Four different VFO's were built and tested for short and long term frequency stability. Two partial schematics are shown below. Each design used the same buffer/amplifier for some sort of control. I found that it is possible to build very stable oscillators using the 2N3904, providing good quality, temperature-stable components are used. Careful attention to the design guidelines published by people like W1FB, W7EL and W7ZOI are mandatory. Electrical engineering knowledge would also be very helpful as I found biasing and feedback resistance values, coupling cap values and inductor Q all can have an effect on frequency stability and/or output noise. My tests failed to determine why the JFET is so popular; there are just too many variables to factor in both electronically and through building techniques. Possibly, the easiest no-fail VFO to build is the tapped inductor Hartley using a JFET and this may help explain the popularity of the JFET. This design was by far the most stable design for both short and long term drift and is the most stable VFO that I have ever built. The VFO will see duty as a lab oscillator for use in future projects built for the great QRP band, 30 meters. Despite the fact that the oscillators built with the bipolar transistors were frequency stable, 1 VFO stood out -- the VFO circuit entitled: An (LC) VFO for 30 Meters
