VARIABLE_SQUARE_WAVES

Published:2009/7/16 4:01:00 Author:Jessie | From:SeekIC

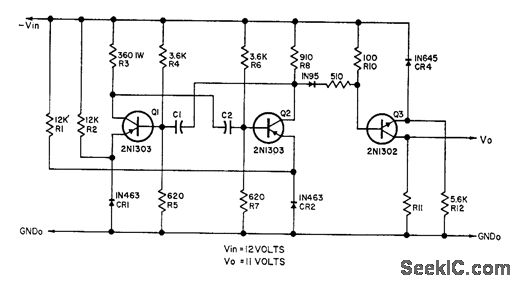

Output is adjustable from 0.5 cps to 60 kc at currents up to 150 ma, without appreciable corner rounding of waveform, with variable pulse width and variable interval between pulses, for driving flash lamps, relays, and computer pales.-J. D. Reed, Square Wave Generator with Variable On and Off Times, EEE, 10:10, p 27-28.
