Unijunction transistor sawtooth wave generator circuit

Published:2011/7/4 19:34:00 Author:Christina | Keyword: Unijunction transistor, sawtooth wave, generator circuit | From:SeekIC

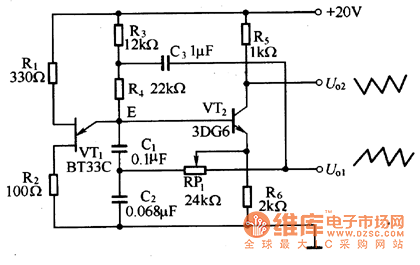

The sawtooth wave generator circuit is as shown in figure 1. It uses the unijunction transistor multivibrator as the foundation, and it has a emitter follower. It can produce the positive and negative sawtooth wave voltage which has good linearity. Figure 1 The sawtooth wave generator circuit principle diagram
