UNIJUNCTION_TRANSISTOR_GENERATES_DESIRED_NUMBER_OF_PULSES

Published:2009/7/16 2:04:00 Author:Jessie | From:SeekIC

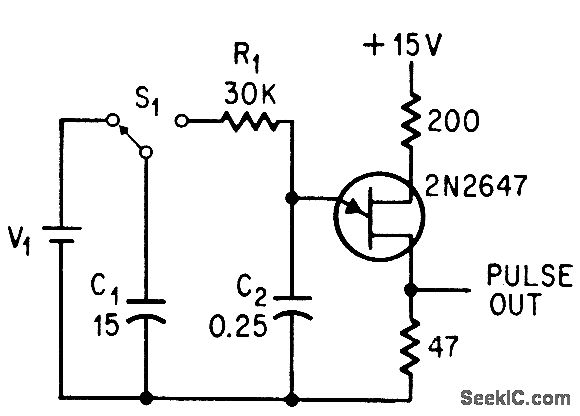

Number of pulses generated each time switch St is operated increases linearly from 0 to 140 as battery voltage is increased from 11 to 35 v. Charge transferred from C1 to C2 fires transistor , discharging C2, with cycle repeating until C2 voltage drops below firing point.-R. Ferrie, Unijunction Circuit Generates Specific Number of Pulses, Electronics, 37:15, p 78.
