UNIJUNCTION_SAWTOOTH

Published:2009/7/23 22:42:00 Author:Jessie | From:SeekIC

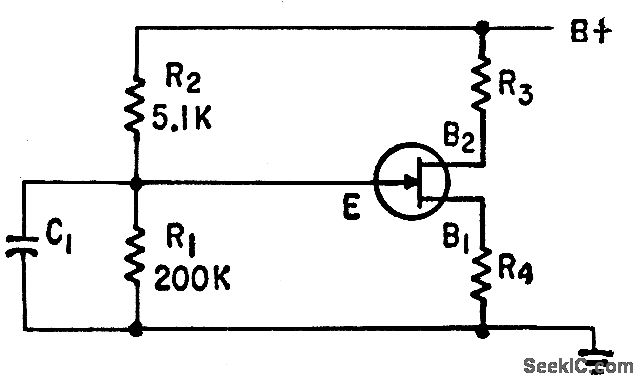

Uses ZJ14 unijunction transistor. R1 represents input impedance of conventional emitter-follower having nominal 5,000.ohm impedance in emitter circuit. R3 is 3K and R4 is 330 ohms.-M. Rosen, Subaudio Swept Signal Generator, Electronics, 33:17, p 67-68.
