ULTRALINEAR_RAMP_GENERATOR

Published:2009/7/23 22:48:00 Author:Jessie | From:SeekIC

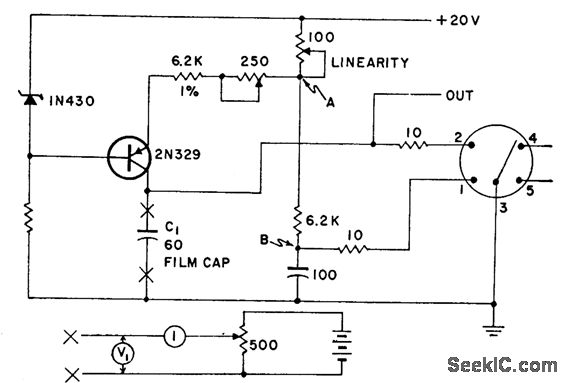

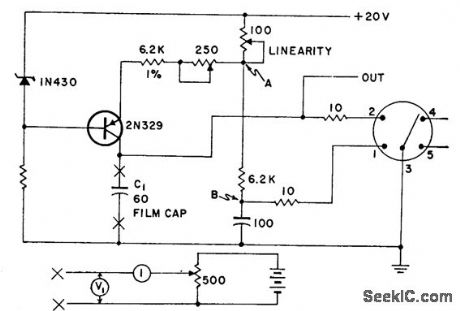

Used in high-accuracy low-speed voltage to pulse width converter. Linearity is better than 0.02% between 10 and 90% points of ramp. Test circuit below is substituted for C1 when adjusting linearity control.-Ultra linear Ramp Generator, Electronic Circuit Design Hand-book, Mactier Pub. Corp., N.Y., 1965, p 166.
