Triangle_square_wave_generator

Published:2009/7/23 22:55:00 Author:Jessie | From:SeekIC

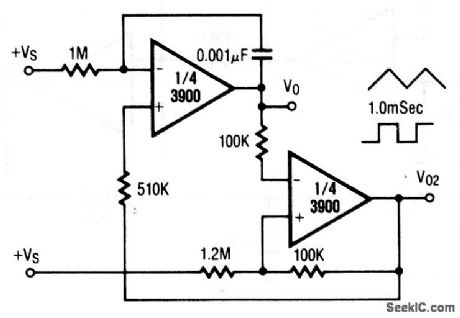

This circuit uses two sections of 3900 op amp. The duration of the triangle-(V0) and square-wave (V02) is 1.0 mS with the values shown. Raytheon Linear Integrated Circuts, 1989, p. 4-273.
