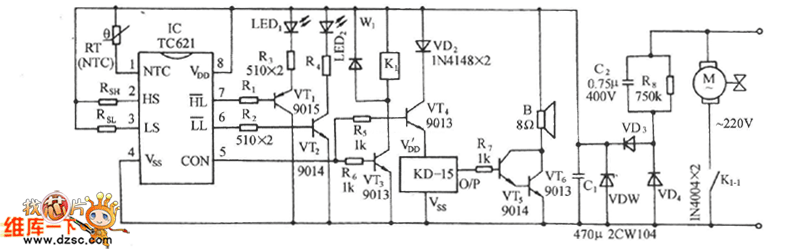

See as the figure, the circuit consists of the temperature sensor and the relay controlled fan motor circuit, temperature limit indicating circuit, music generating circuit and AC step-down circuit, etc. The core part is the TC621 temperature control integrated circuit.
