The fuse box indicator (2)

Published:2011/7/23 21:50:00 Author:qqtang | Keyword: fuse box, indicator | From:SeekIC

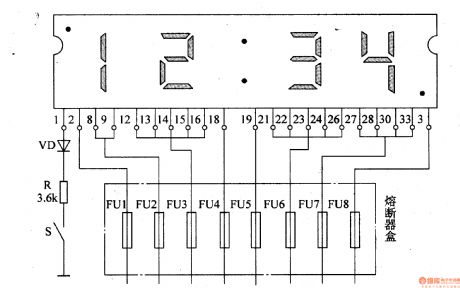

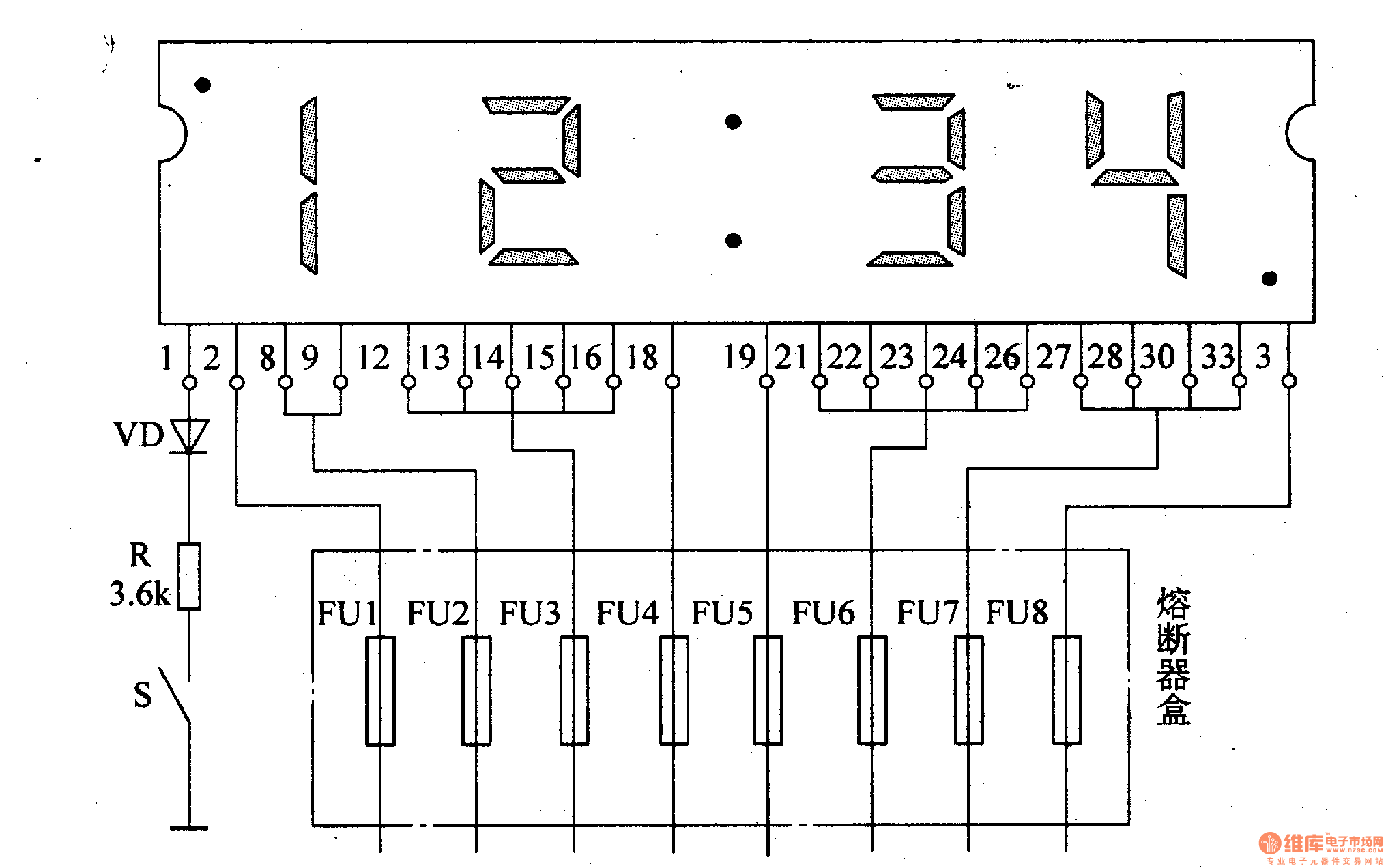

Here is to introduce a fuse box which utilizes the digital display to monitor and indicate the working state of the car fuse box, it characterizes direct display and convenient search.The working principle of the circuitThe fuse box indicator circuit consists of the digital display of integrated circuit type, diode VD, resistor R and power supply switch S, see as figure 7-45.
