The continual signal frequency splitting circuit composes of CC4013

Published:2011/6/17 20:40:00 Author:Borg | Keyword: signal frequency, splitting circuit | From:SeekIC

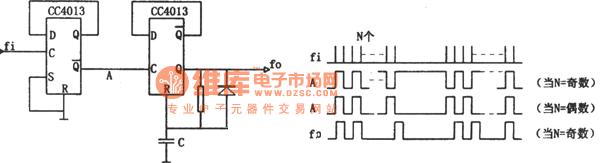

In the figure is the continual signal frequency splitting circuit composes of CC4013. This circuit consists of a double frequency splitter circuit and a single steady circuit, which can fulfill the splitting function with external signals, but when the input signal is halt, the circuit can come back to the 0 state automatically. The single steady time can be adjusted according to requirements. The input signal is in the terms of continual bundles. After it crosses the 1st stage frequency splitter, though the pulse in the bundle is split, the interval between bundles may be in the low LEV (if the number of the pulse in the bundle is even).
