The circuit of the emitting component SB-100ATX

Published:2011/6/27 19:58:00 Author:Borg | Keyword: emitting component | From:SeekIC

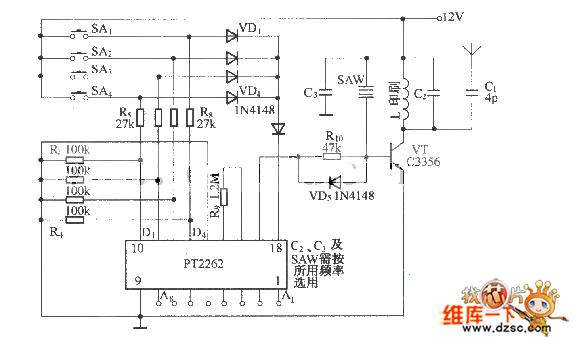

SB-100 is a general remote control component, the model of the emitting component is SB-100ATX, the reception component is SB-100ARX. SB-100ATX is a high stability wireless remote control emitting circuit composed of SAW elements, whose circuit is almost the same with CS900. Figure: The circuit of the emitting component SB-100ATX The circuit contains a loading oscillator circuit composed of the ultra-high frequency triode C3356 and the SAW element and a emitting encode circuit composed of the digital encoding circuit, see as the figure. SB-100ATX emitting component characterizes stable frequency.
