The adjustable constant frequency splitter composed of S8424

Published:2011/6/17 21:59:00 Author:Borg | Keyword: adjustable constant, frequency splitter | From:SeekIC

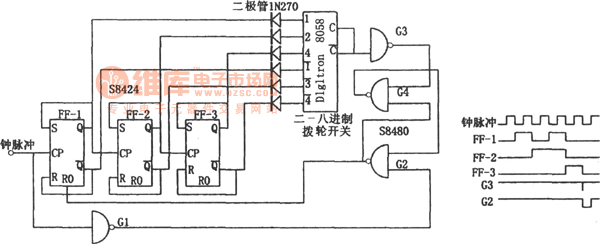

In the figure is the adjustable constant frequency splitter composed of S8424. This circuit consists of R-S trigger, gate circuit and binary-octal dial switch, which can do 1~8 frequency splitting. In the figure, 8058 is the switch, S8424 is the two-team RST trigger. S8480 is the 4*2 inputting NAND. The binary-octal dial switch is used to confirm the constant of the splitter, which makes sure the trigger is reset. If the binary-decimal dial switch is used, then an external trigger and two diodes are needed.
