The Pin Functions and Data Circuit of the TDA9178

Published:2011/4/21 2:30:00 Author:TaoXi | Keyword: Pin Functions, Data Circuit | From:SeekIC

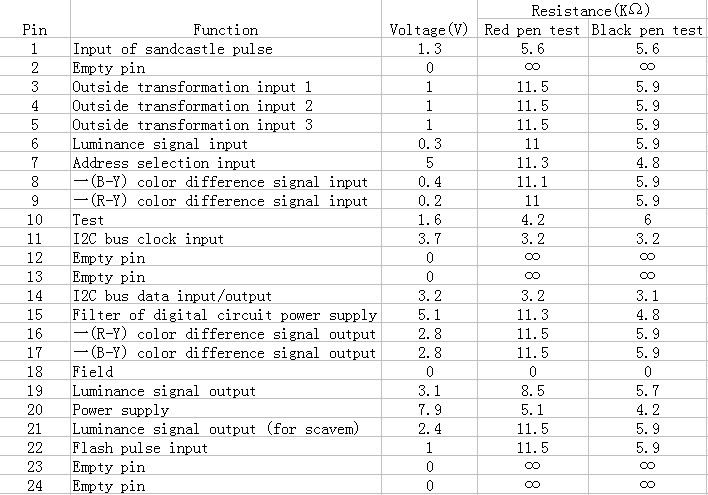

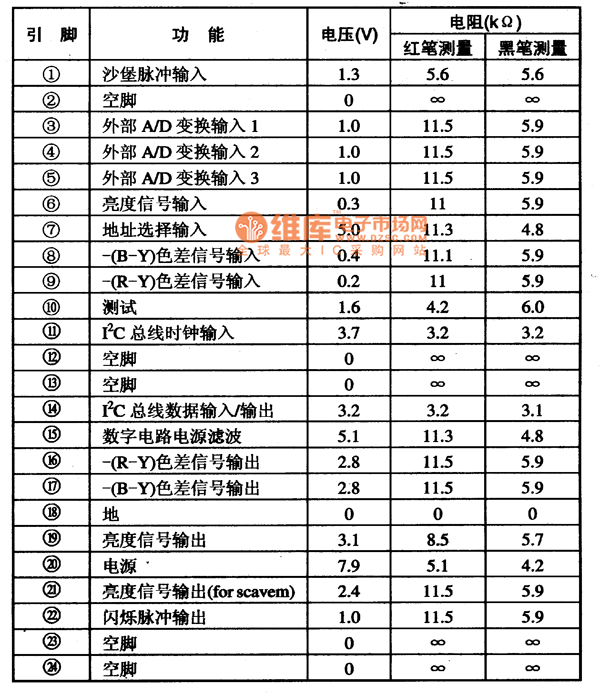

1. Pin functions and data: with the package of 24-pin dual in-line, the pin functions and data circuit of the TDA9178 is listed in the table 64. Table 64 The pin functions and data circuit of the TDA9178
