The 555 electronic fishing game circuit

Published:2011/5/25 3:26:00 Author:nelly | Keyword: electron, fishing game, circuit | From:SeekIC

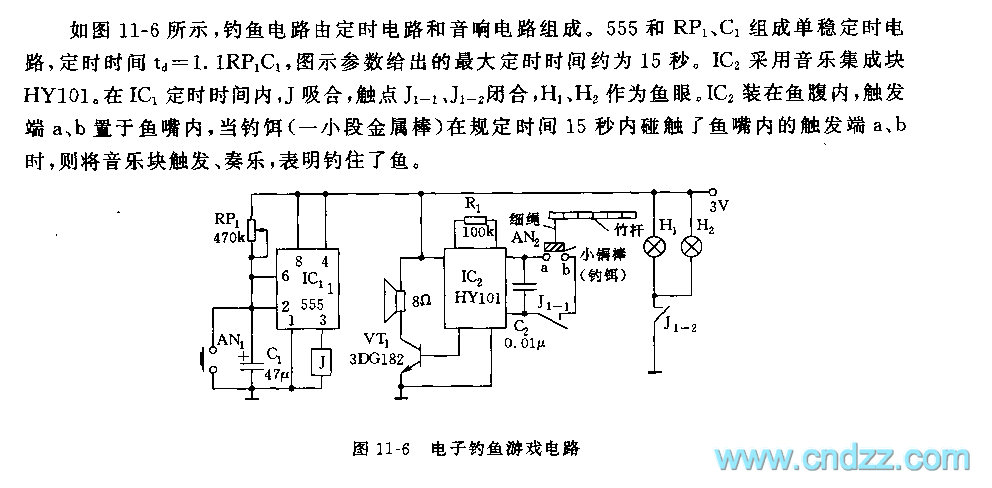

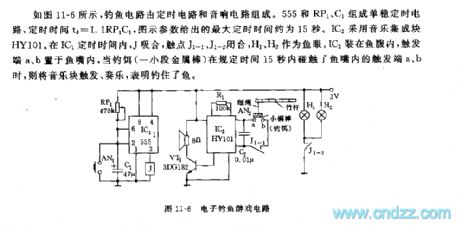

As shown on the figure 11-6, the fishing circuit consists of timing circuit and audio circuit. 555, RP1 and C1 make up the single shot circuit. The definite time: td=1.1RP1C1. The maximal definite time given by the figure is 15s.IC2 adopts the muisc integrated block HY101. In the IC1's definite time, J is pull-in, the contact J1-1 and J1-2 is closed, H1 and H2 are treated as fish-eye. IC2 is sacked in the fish belly, the a and b is loaded in the fish mouth,If the metal bar in 15s contacts the a and b in the fish mouth, the music block will play up which represents the fish is catched.
