The 3-phase square wave signal oscillator

Published:2011/6/22 0:58:00 Author:Borg | Keyword: 3-phase, square wave, signal oscillator | From:SeekIC

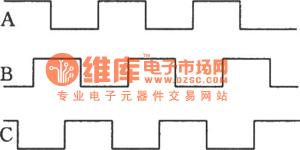

In the circuit is a gundam senary counter which is composed of a CD4017, the input clock frequency is 300Hz, VDl～VD9 and R1～R3 compose 3 s-phase input OR gates, they pick out the 3-phase square wave signals whose difference is 120o and the frequency is 50Hz. The 3-phase signal can be got from either A, B or C. The waveform are shown here.
