TWO_CHIP_AM_RECEIVER

Published:2009/6/24 4:29:00 Author:Jessie | From:SeekIC

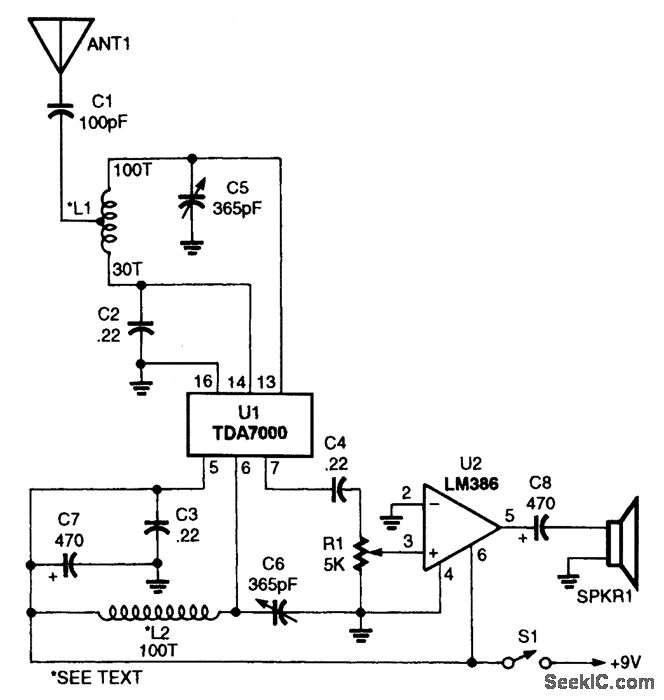

This receiver is comprised of a TDA7000 single-chip FM receiver (U1), an LM386 low-voltage audio-power amplifier (U2), a pair of hand-wound coils (L1 and L2), and a few additional components.L1 and L2 are 100 tums of #28 wire on toroidal cores (about 240 μH each). L1 is tapped at 30 turns.
