TWO_54_MC_OUTPUTS_FROM_3_MC

Published:2009/7/15 2:45:00 Author:Jessie | From:SeekIC

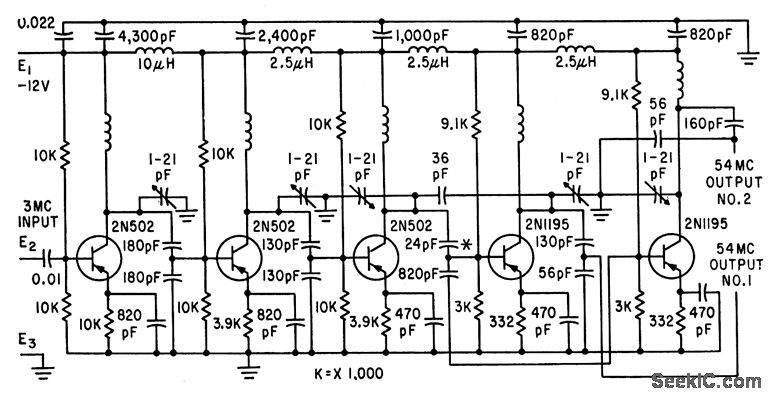

Uses three class AB common-emitter amplifiers.First two are triplets that multiply 3-Mc input to 27 Mc. Third doubles this to 54 Mc, and drives two parallel 54.Mc class AB output amplifiers providing 25 mw each.-J. W. Hamblen and J. B. Oakes, Instrumentation and Telemetry of Transit Navigational Satellites, Electronics, 34:32, p 148-153.
