TV Pattern Generator (ZNA234E)

Published:2012/9/13 3:45:00 Author:Ecco | Keyword: TV Pattern, Generator | From:SeekIC

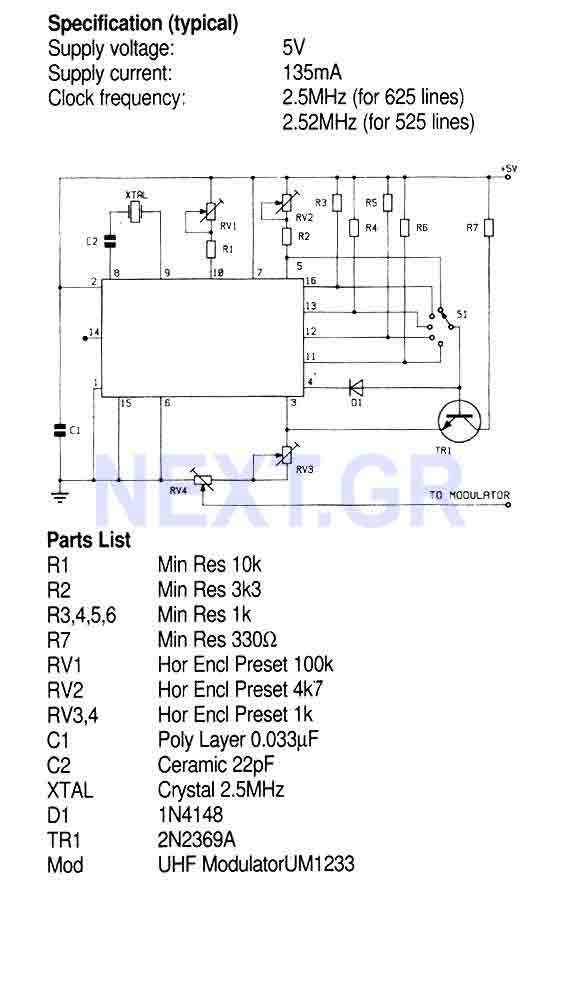

This Circuit uses the ZNA234E IC which makes available all the waveforms necessary to produce the crosshatch, dot and greyscale test patterns on a television screen. The composite video output can be injected directly into the video input of a receiver or used to drive a modulator for connection to the aerial socket. Source: NEXT.GR
