TUNNEL_DIODE_CURVE_TRACER

Published:2009/7/22 20:31:00 Author:Jessie | From:SeekIC

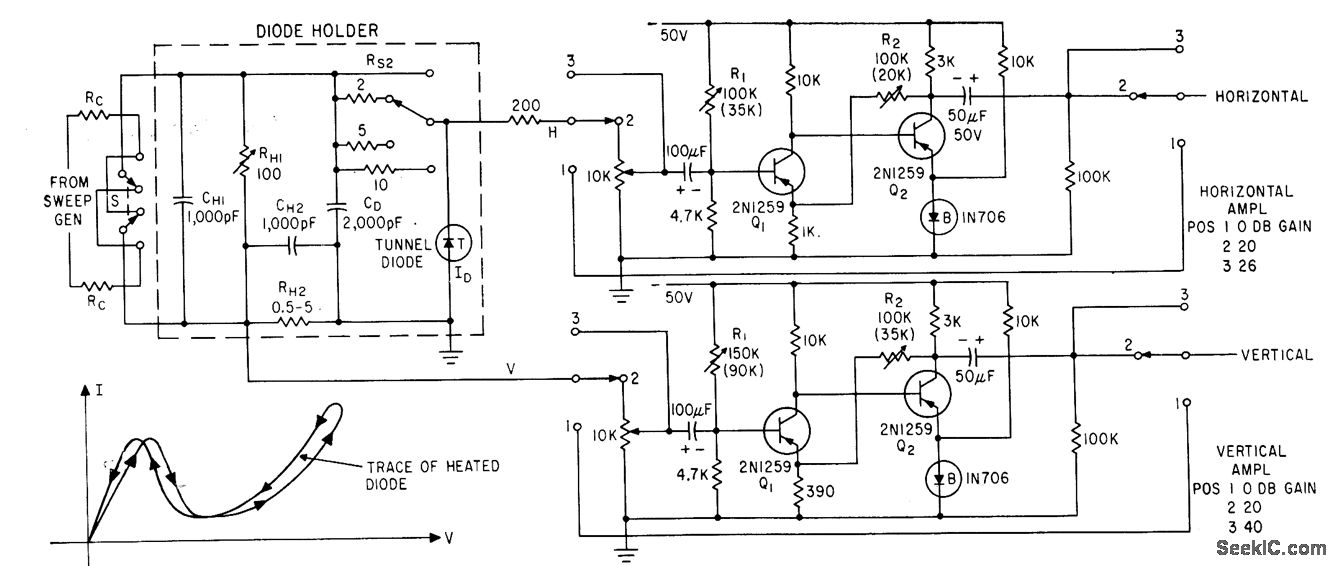

Diode holder uses germanium blocks as low-inductance resistors, for tracing negative-resistance region of tunnel diode. Heating effects may cause double trace.-H. G. Dill and M. It. Mac-Pherson, Tracing Tunnel Diode Curves, Electronics, 33:32, p 62-64.
