TUBE_LIFE_TEST_PULSER

Published:2009/7/22 20:54:00 Author:Jessie | From:SeekIC

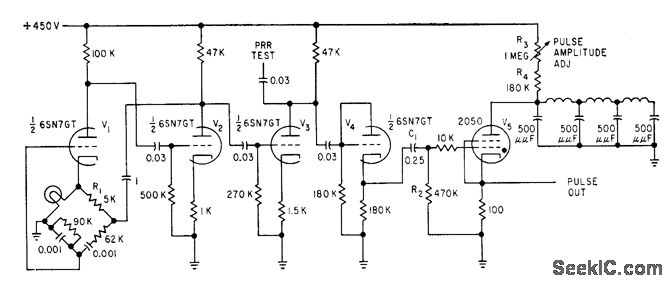

Pulse generator produces 0.25-microsec pulses at 50 v for life-testing of 1 to 15 microwave triodes at a time. Amplitude and repetition rate are adjustable within limits.-R. S. Ringland, Pulse Variable Works into Variable Load, Electronics, 31:37, p 102-103.
