TRIPLER_DOUBLER_GIVES_700_1200_MC

Published:2009/7/15 2:59:00 Author:Jessie | From:SeekIC

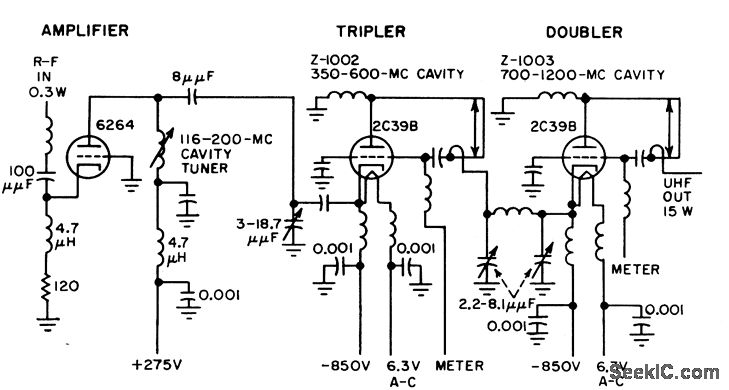

First stage is grounded-grid amplifier, with plate tuned by 1-turn coil and variable capacitor. Common-grid tripler and doublet are tuned with coaxial resonators. –A. E. Anderson and H. D. Hern, F-M Exciter For Sight or Scatter Systems,Electronics,31:11, p 148-151.
