TRF_RADIO

Published:2009/7/17 2:29:00 Author:Jessie | From:SeekIC

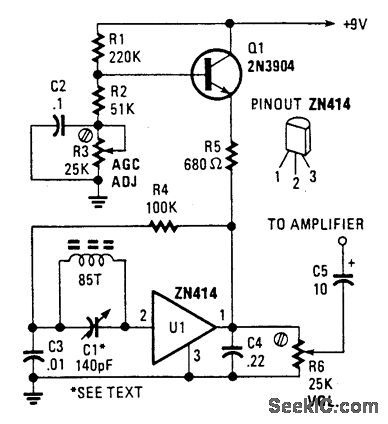

This simple AM radio uses a Ferranti ZN414 IC and runs from a 9-V supply. A 5/16 -diameter ferrite rod serves as an antenna, and uses about 85 turns of #28 enatnelled wire.
