TRANSMISSION_LINE_RESONATOR_VCO_CIRCUIT

Published:2009/7/22 3:36:00 Author:Jessie | From:SeekIC

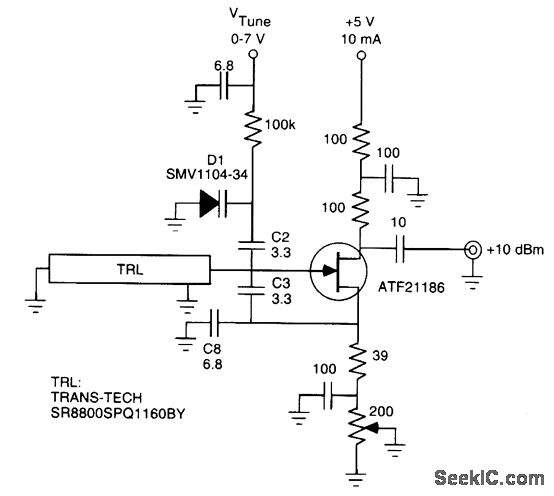

The figure shows a typical VCO circuit using a transmission-line resonator and varactor tuning. This circuit is for 855 to 890 MHz.
