TRANSISTOR_TESTER_3

Published:2009/7/21 22:30:00 Author:Jessie | From:SeekIC

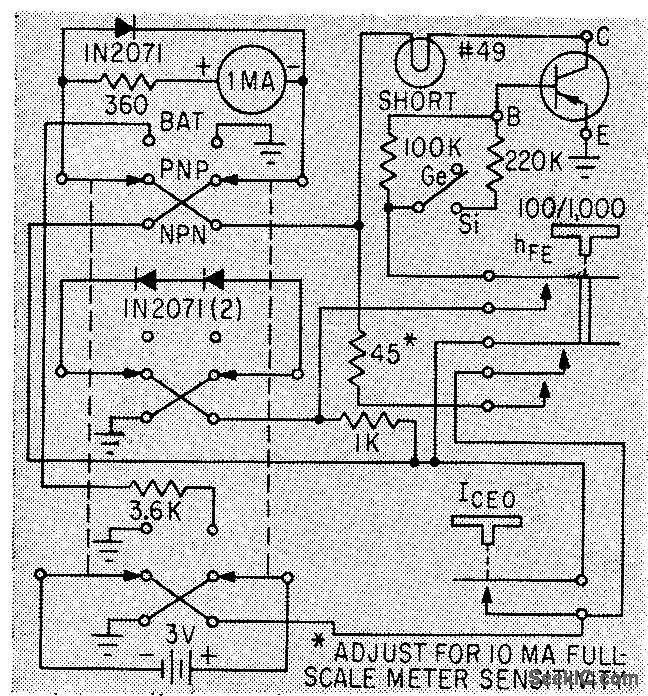

Leakage current and common-emitter current amplification are checked by using forward voltage drop across two silicon rectifiers in series as reference voltage. Base current of transistor under test is held constant by switching series base resistance.-G. F. Montgomery, Buildinga Simple Transistor Tester, Electronics, 36:16, p 56.
